About This

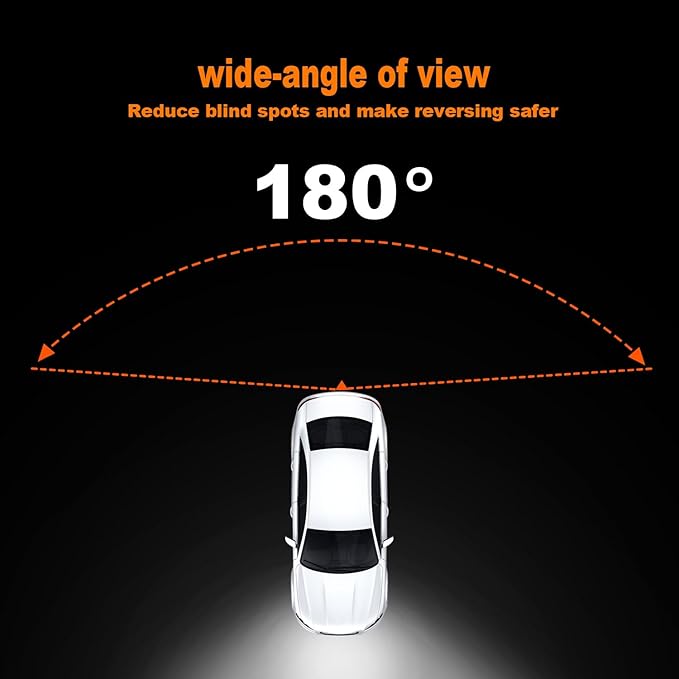

• 【Ultra-Wide 180° Viewing Angle – Eliminate Rear Blind Spots】 This backup camera features an ultra-wide horizontal 180° field of view, covering nearly 100% of the area behind your vehicle. Say goodbye to dangerous blind spots and enjoy safer reversing, parking, and maneuvering.
• 【IP69K Waterproof with Rugged Aluminum Housing】 Built to withstand harsh weather, this rear view camera is IP69K waterproof certified. Each unit undergoes a 4-hour submersion test in 1-meter-deep water before shipping. Its aluminum alloy shell ensures durability in extreme temperatures, preventing damage from expansion and contraction.

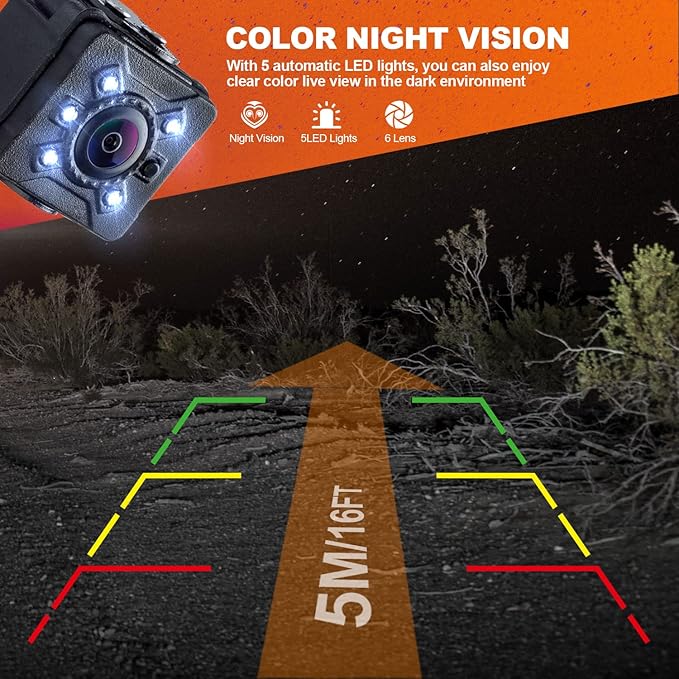

• 【Enhanced Night Vision – 5 White LEDs + 0.1Lux Low Light Performance】 With a 0.1Lux sensor and built-in 5 white LEDs, this reverse camera delivers excellent visibility even in total darkness. Light sensors activate the LEDs automatically in low light, illuminating over 6 square meters. Combined with your car’s reverse lights, this camera ensures crystal-clear night-time reversing.

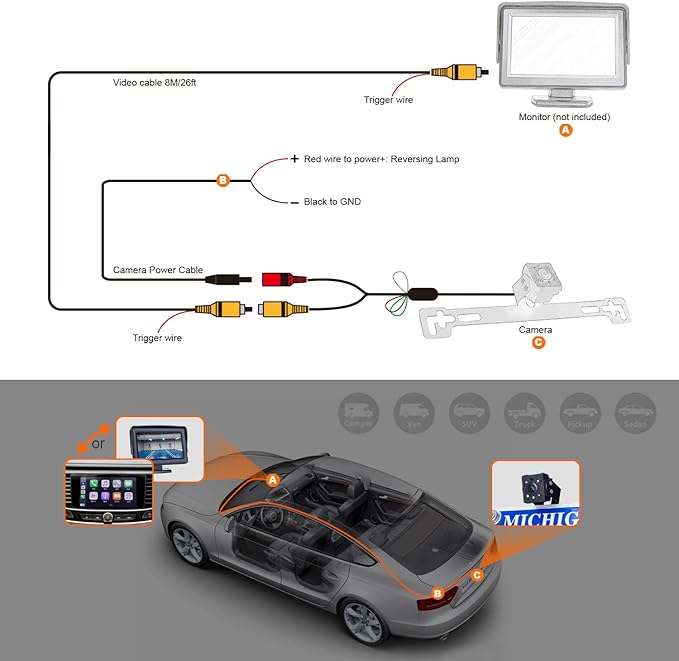

• 【Dual Video Signal Support: CVBS & AHD】 Compatible with both traditional and high-definition monitors. Default output is CVBS (for standard analog screens), and switching to AHD (for HD displays) is easy—just cut the gray-white wire. This flexibility makes installation simple and ensures compatibility.
• 【Adjustable Guidelines & Front/Rear Installation】 Built-in parking guidelines help you reverse with confidence. If your monitor already has guides or you prefer a clean image, just cut the green wire to disable them. This camera also supports front installation to monitor the front blind zone.

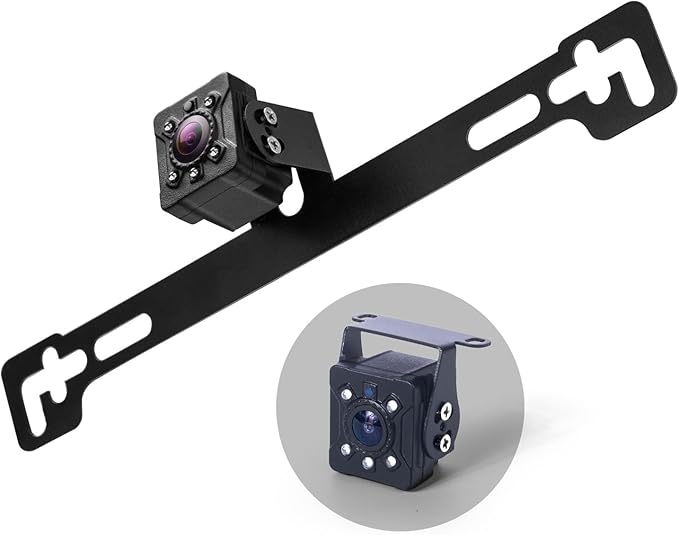

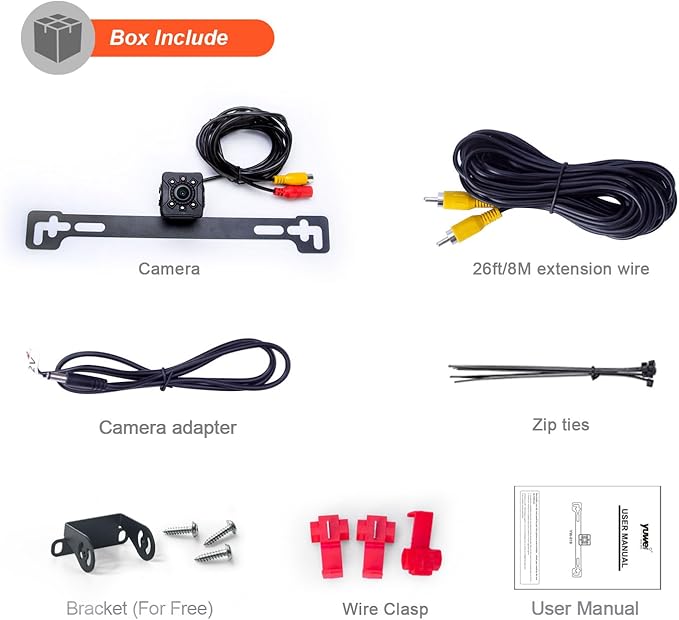

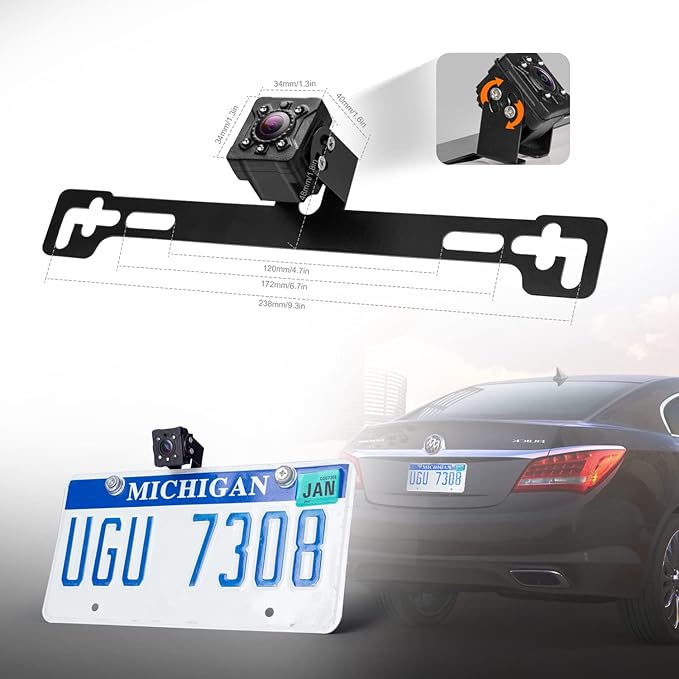

• 【Dual Mounting Brackets + 26ft Video Cable Included】 Comes with two mounting brackets: a long bar bracket for license plate area, and a compact bracket for flexible positioning. The included 8-meter (26ft) video cable suits most vehicles under 6 meters in length, from sedans to small vans.
• 【Trusted Manufacturer with 10+ Years Experience】 We’ve been producing vehicle backup camera systems for over a decade. Every day, More than 300 vehicle around the world are being fitted with this camera every day.

Overview

• Brand : yuwei
• Screen Size : 4.3 Inches
• Product Dimensions : 1.3'L x 1.3'W x 1.6'H
• Compatible Devices : Monitor
• Installation Type : Dashboard Mount,Surface Mount
• Voltage : 12 Volts
• Optical Sensor Technology : CMOS
• Lens Type : Fixed
• Real Angle of View : 170 Degrees
• Connector Type : RCA
