About This

• 【𝐔𝐧𝐢𝐯𝐞𝐫𝐬𝐚𝐥 𝐁𝐚𝐜𝐤 𝐔𝐩 𝐂𝐚𝐦𝐞𝐫𝐚】Jansite upgrade a real universal reverse camera to support CVBS/AHD 1080P switch, solve all your compatibility problem. AHD 1080P High Definition Backup Camera, 1920*1080 Pixels, support high quality night vision image, fisheye lens 170 degrees wide viewing angle covering most blind spot area, will meet your need for sure. Rear camera also support mirror/normal image and guideline on/off switch.

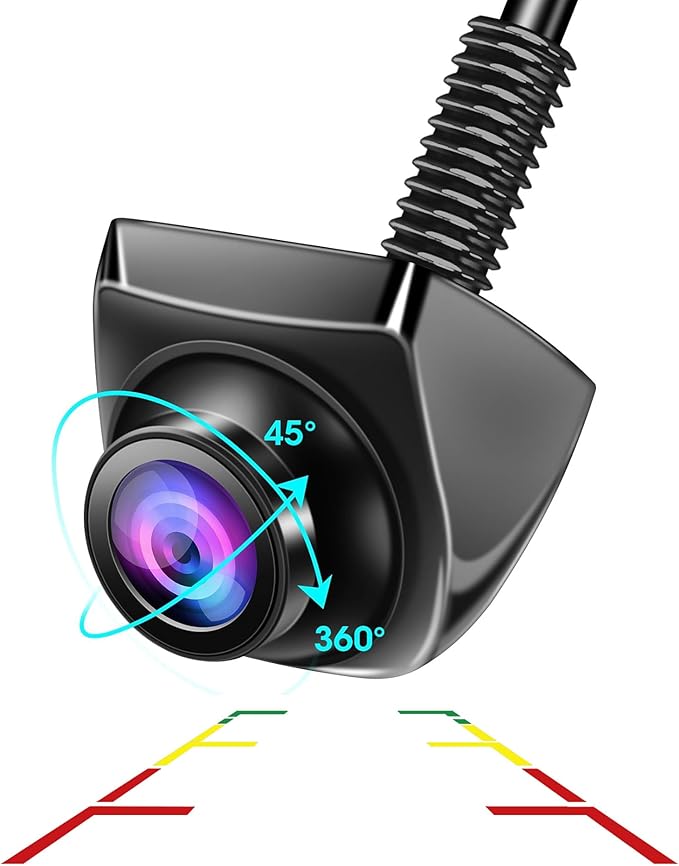

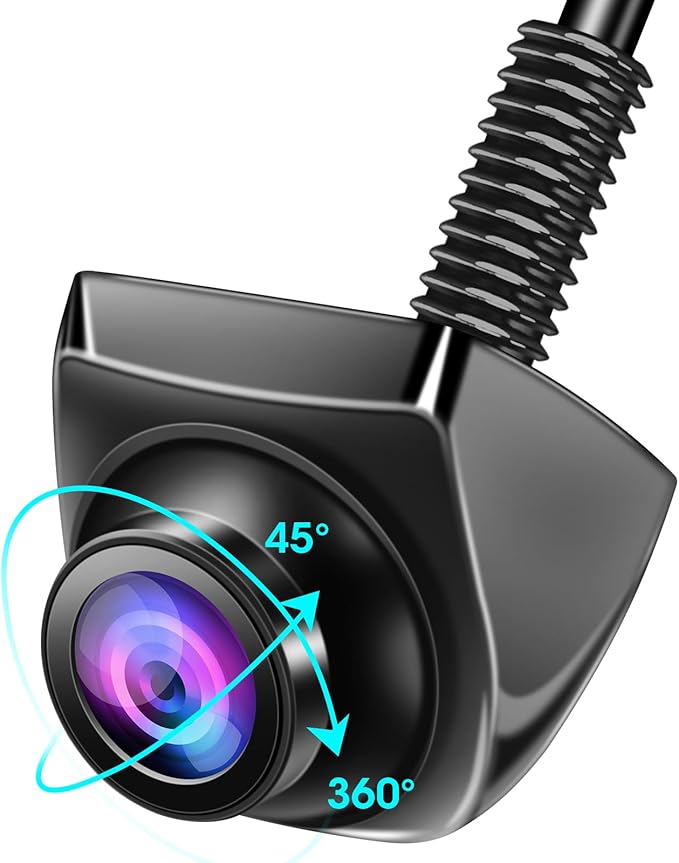

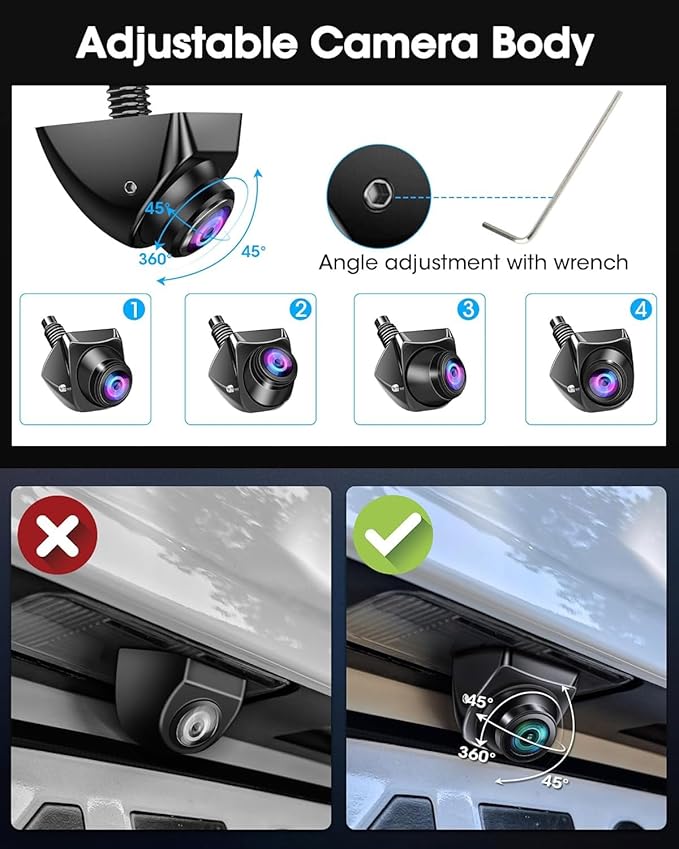

• 【𝐅𝐮𝐥𝐥𝐲 𝐔𝐩𝐠𝐫𝐚𝐝𝐞 𝟑𝟔𝟎°𝐑𝐨𝐭𝐚𝐭𝐚𝐛𝐥𝐞 𝐁𝐚𝐜𝐤𝐮𝐩 𝐂𝐚𝐦𝐞𝐫𝐚】To Solve install position and image view issue, Jansite tried every effort and finally upgrade a 360°rotate backup camera for car: just rotate lens up/down/left/right to find perfect angle of view anywhere and anytime. With the backup camera,you never need to worry about the image too high or too low,never need to adjust install angle only by adding gaskets, can install the backup camera at any position.
• 【𝐄𝐧𝐡𝐚𝐧𝐜𝐞𝐝 𝐍𝐢𝐠𝐡𝐭 𝐕𝐢𝐬𝐢𝐨𝐧, 𝟏𝟕𝟎° 𝐖𝐢𝐝𝐞 𝐀𝐧𝐠𝐥𝐞】AHD backup camera for car designed with sony chip,a large F1.8 aperture, 6 glass lens and WDR technology to ensure high sensitivity and light transmission, which displays clear and true color in low light conditions, brings excellent night vision. Combine with upgrade 170°wider viewing angle,backup camera for truck covers most blind spot areas,offers a perfect parking view at night
• 【𝐈𝐏𝟔𝟗𝐊 𝐖𝐚𝐭𝐞𝐫𝐩𝐫𝐨𝐨𝐟, 𝟏𝟐-𝟐𝟒𝐕 𝐂𝐨𝐦𝐩𝐚𝐭𝐢𝐛𝐥𝐞】Back up camera for cars supports IP69K waterproof and dustproof. Rear view camera is made of high purity resin and designed with fully sealed glue filling craft, in any weather, high or low temperature, you absolutely no need to worry about water, fog or mist inside, long service life. And unlike some reverse camera only support 12V, the back up camera for truck. rv upgrade to support 12-24V vehicles
• 【𝐔𝐧𝐢𝐯𝐞𝐫𝐬𝐚𝐥 𝐑𝐂𝐀 𝐂𝐨𝐧𝐧𝐞𝐜𝐭𝐢𝐨𝐧】The reverse camera for car designed with standard RCA connection, works with your head units or aftermarket LCD/TFT displays which has RCA input, suitable for variety of vehicles: car, mini-truck, mini-van etc.The vehicle backup cameras will not support dash cam/mirror dash cam as different connection and pin definition.The rv backup camera support mirror/normal image switch, can also be used as front or side camera

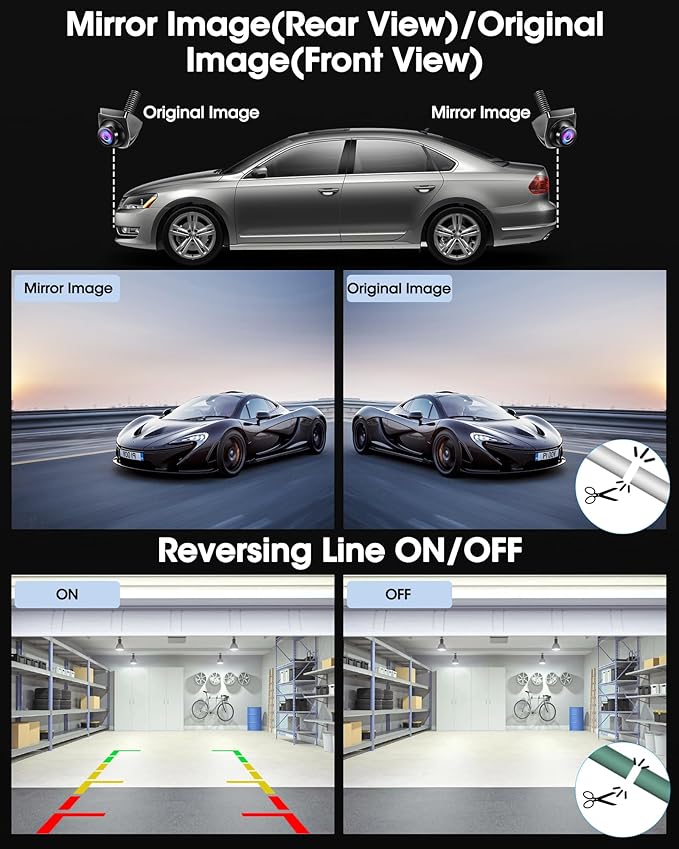

• 【Rearview Camera with 3 Switcher Cables】1. Cut orange cable to switch CVBS video signal to AHD video signal, if your monitor supports AHD 1080P video settings. 2. Cut white cable to switch mirror image(rear view) to non-mirror image(front view). 3. Cut green cable to turn off the guide line. Please reconnect power supply after cutting any cable
• ATTENTlON: Anything unclear, please check the user manual in the package or leave a message on Amazon, we will get back within 24 hours usually

Overview

• Brand : Jansite
• Screen Size : 1 Inches
• Product Dimensions : 1'L x 1'W x 1'H
• Compatible Devices : Monitor
• Installation Type : Surface Mount
• Voltage : 12 Volts
• Optical Sensor Technology : CMOS
• Lens Type : Wide Angle (Fisheye)
• Real Angle of View : 170 Degrees
• Connector Type : RCA
